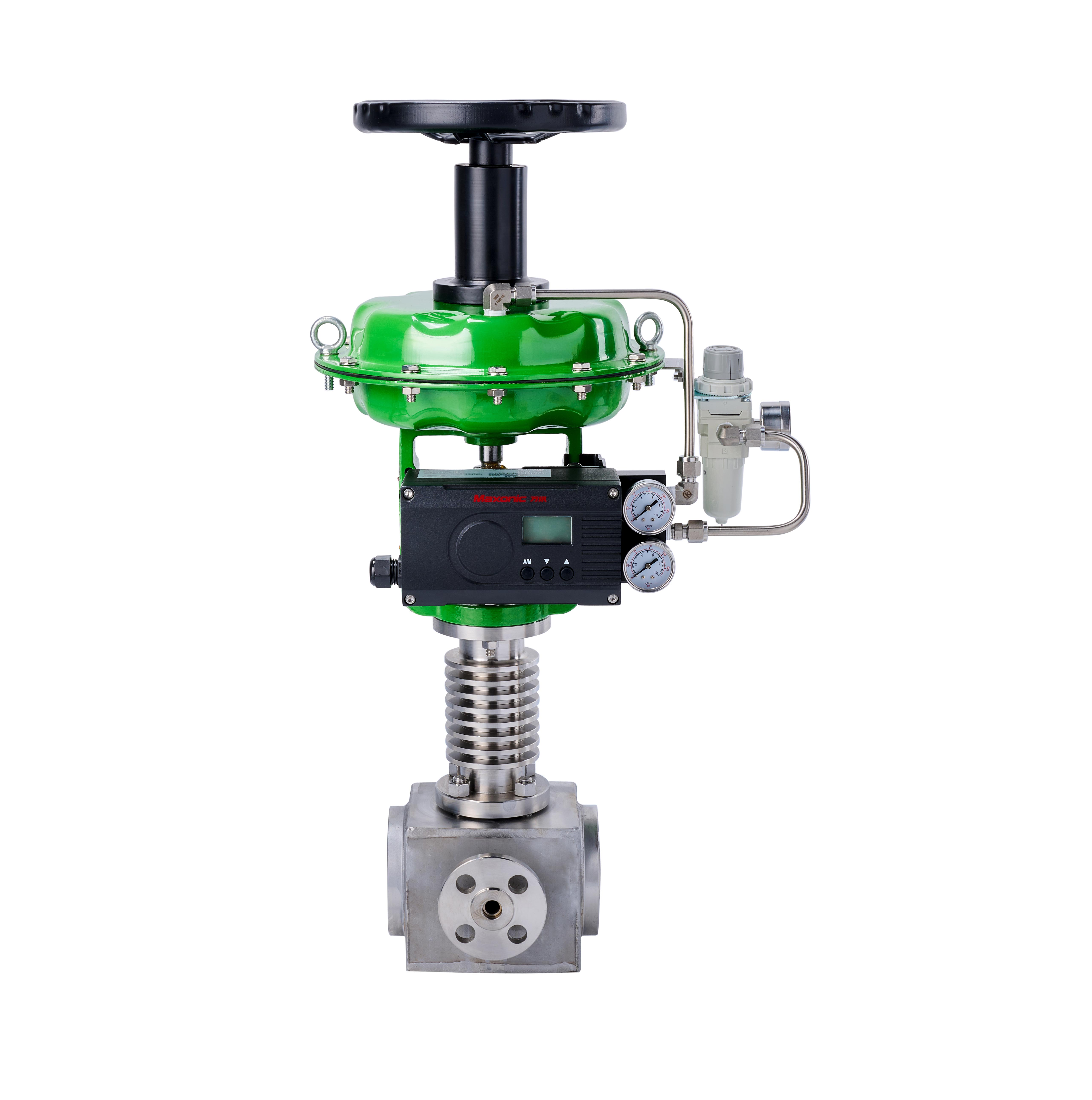

Pneumatic Diaphragm Forged High Temperature Control Valve

Engineered for severe high-temperature and high-pressure process conditions, the Pneumatic Diaphragm Forged High Temperature Control Valve combines a forged pressure-retaining body with a pneumatic diaphragm actuator to deliver precise and stable flow regulation. The forged construction provides enhanced strength and resistance to thermal and mechanical stresses, while the extended bonnet and heat-resistant trim help protect the packing system and maintain control performance at elevated temperatures.

The valve is particularly suitable for superheated steam, high-temperature gas, thermal oil, petrochemical, refinery, and power generation applications. Its compact forged construction and application-specific trim options make it well suited for demanding services involving high differential pressure, erosion, cavitation, or thermal cycling, where dependable modulation and pressure containment are critical.

Inquire Now Next Products

Technical Specifications

Parameter	Specification
Valve Type	Forged Globe Control Valve
Body Construction	Fully Forged Body
Actuator	Pneumatic Diaphragm Actuator
Size Range	DN15-DN300
Pressure Rating	Class 600-Class 2500
Body Material	Forged F11, F22, F91, SS316
Temperature Range	-196℃~650℃
Trim Material	Hardened Stainless Steel / Stellite
Bonnet Type	Extended Bonnet
Leakage Class	ANSI Class V-VI
Connection	Socket Weld / Butt Weld / Flanged
Application	Steam System, Thermal Power, Refinery

Features & Benefits

Forged Pressure Boundary

The forged body provides high structural strength and resistance to pressure, thermal shock, and mechanical loading.

High-Temperature Trim

Heat-resistant and hardened trim options can be selected to withstand elevated temperatures, high velocities, and erosive process conditions.

Pneumatic Diaphragm Actuation

Delivers responsive and repeatable stem movement for continuous automatic flow regulation.

Extended Bonnet Configuration

Helps create a thermal buffer between the hot process medium and the packing and actuator components.

Precise Modulation

Engineered plug and seat profiles provide controlled flow adjustment and predictable process response.

High Differential Pressure Handling

Multi-stage or pressure-balancing trim can be incorporated to manage severe pressure drops and reduce excessive fluid energy.

Anti-Cavitation & Anti-Erosion Options

Specialized internal configurations help limit cavitation, flashing, erosion, vibration, and noise in challenging services.

Thermal Cycling Resistance

Forged construction and carefully selected sealing components help accommodate repeated heating and cooling cycles.

Fail-Safe Operation

The pneumatic actuator can be configured for fail-open, fail-closed, or other predefined safety positions.

Suitable for High-Energy Applications

Ideal for main and auxiliary steam, superheated steam, high-temperature gas, thermal oil, refinery, petrochemical, and power plant process systems.
